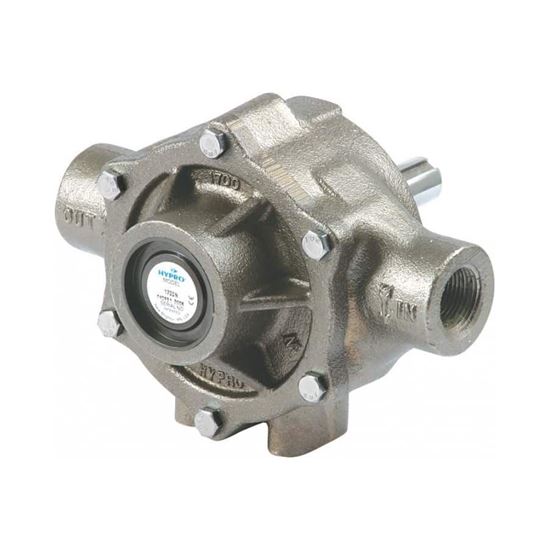

Hypro 1700XL-MR roller pump (reverse rotation). This roller vane pump has a Silver Series XL (custom alloy) body, buna seals and an output of 13.8 bar / 200 PSI at 170 litres per minute.
This is the reverse rotation and buna seals version.
Silver Series XL® has a custom alloy that provides the best corrosion resistance.
Hypro roller pumps are the most popular pumps worldwide for agricultural tasks. These low-cost, highly-versatile pumps are used for spraying and transferring a variety of fluids including insecticides, herbicides, fungicides, emulsives, aromatic solvents, liquid fertilisers and many other non-abrasive liquids. All pumps are available in three materials: Cast Iron, Ni-Resist or Silver Series XL®.
These pumps contain rollers that revolve inside the pump housing to force the spray solution through the outlet to the nozzle. Hypro roller pumps are easily adaptable to PTO, petrol / diesel engine or electric motor drives. The pumps operate efficiently at PTO speeds of 540 and 1000 RPM. Pressure ranges are up to 300 psi (20.7 bar) with flow rates of 7.6 to 235 litres per minute.
This is a very high quality roller pump.
Details:
-
Maximum Pressure – 13.8 Bar / 200 PSI
-
Maximum Flow – 170 Litres Per Minute
- Max Fluid Temperature – 60°C
- Maximum Power – 6.1HP / 4.55kW
- Maximum Speed – 1000 RPM (Reverse Rotation)
- Male Shaft – 15/16″
-
Self-Priming
-
Body Material – Silver Series XL (Custom Alloy)
- Rotor Material – Silver Series XL (Custom Alloy)
-
Buna Seals
- 5 Roller Pump With Super Rollers
- Inlet – 1” NPT Female
-
Outlet – 1” NPT Female
